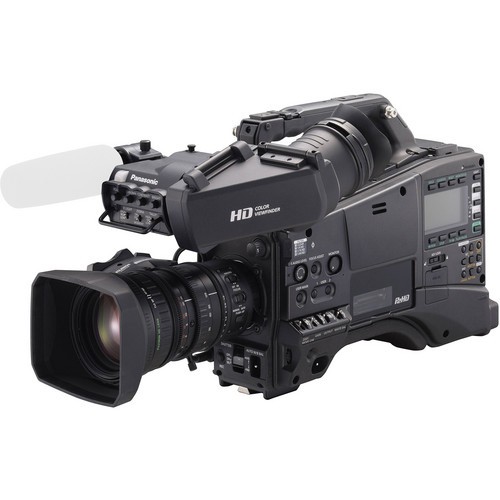

Panasonic AG-HPX600EN Camcorder with AG-CVF15 Viewfinder and Fujinon XA16x8A-XB4 Lens (ประกันศูนย์ไทย)

Panasonic AG-HPX600EN Camcorder with AG-CVF15 Viewfinder and Fujinon XA16x8A-XB4 Lens
PRODUCT HIGHLIGHTS

ENG Style Shoulder Mount with 2/3 Sensor
8-128mm f/1.9-2.8 Fujinon 16x Zoom Lens
920K Dot Resolution Color Viewfinder
AVC-Intra 10-bit 4:2:2 Recording
Optional Compatibility with AVC-ULTRA
Chromatic Aberration Compensation
Flash Band Compensation
Focus Assist, Expand and Focus Bar
Waveform and Vectorscope
Camera Remote Interface

Camera
Sensor 1 x 2/3″ MOS
Lens Mount 2/3″ bayonet type (B4)
Built-in Filters 4 position ND (Clear, 1/4, 1/16, 1/64)
Gain -3, 0, 3, 6, 9, 12, 18 dB (18 dB: USER SW allocation)
When SHOOTING MODE is NORMAL on SYSTEM SETUP MENU -3 dB setting is treated as 0 dB and 18 dB setting can not be active.
Color Temperature ATW, ATW LOCK, Ach, Bch, Preset 3200 K/Preset 5600 K/VAR (2400 – 9900 K)
Shutter Speed Preset Shutter Speeds in 59.94 Hz mode
60i/60p mode: 1/60 (OFF), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000 sec.
30p mode: 1/30 (OFF), 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000 sec.
24p mode: 1/24 (OFF), 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000 sec.
Preset Shutter Speeds in 50 Hz mode
50i/50p mode: 1/50 (OFF), 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000 sec.
25p mode: 1/25 (OFF), 1/50, 1/60, 1/120, 1/25, 1/500, 1/1000 sec.
Slow Shutter Speeds in 59.94 Hz mode
60i/60p mode: 1/15, 1/30 sec.
30p mode: 1/15 sec.
24p mode: 1/12 sec.
Slow Shutter Speeds in 50 Hz mode
50i/50p mode: 1/12.5, 1/25 sec.
25p mode: 1/12.5 sec.
Syncro Scan Shutter Speeds in 59.94 Hz mode
60i/60p mode: 1/60.0 to 1/249.8 sec.
30p mode: 1/30.0 to 1/249.8 sec.
24p mode: 1/24.0 to 1/249.8sec.
Syncro Scan Shutter Speeds in 50 Hz mode
50i/50p mode: 1/50.0 to 1/250.0 sec.
25p mode: 1/25.0 to 1/250.0 sec.
Shutter Angle Settings SCENE FILE VFR = OFF
3 ~ 360° in 0.5° step select
SCENE FILE VFR = ON2 (FRAME RATE 12p or more)
3 ~ 360° in 0.5° step select
SCENE FILE VFR = ON2 (Less than FRAME RATE 12p)
3 ~ 22.5° in 0.5° step select
45, 90, 180, 360°
Frame Rates Variable frame rate recording requires the AG-SFU602 upgrade software key
Frame rates in 59.94 Hz mode
1080: 1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30fps in 17 steps
720: 1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 36, 40, 44, 48, 54, 60fps in25 steps
Frame rates in 50 Hz mode
1080: 1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 23, 24, 25fps in 14 steps
720: 1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32, 34, 37, 42, 45, 48, 50fps in 25 steps
Sensitivity When SHOOTING MODE is LOW LIGHT on SYSTEM SETUP MENU:
F12 (2000 lx, 3200 K, 89.9% reflect, 1080/59.94i)
F13 (2000 lx, 3200 K, 89.9% reflect, 1080/50i)
Signal to Noise Ratio 59 dB (standard) (When SHOOTING MODE is LOW LIGHT on SYSTEM SETUP MENU)
Digital Zoom x2, x4
Lens
Mount Type B4
Focal Length 8 – 128 mm
Maximum Aperture f/1.9 – 2.8
35mm Equivalent Focal Length 31.44 – 503.04 mm
Zoom Ratio 16x
Recording
Recording Media P2 card
System Formats 1080/59.94i, 1080/23.98PsF2, 720/59.94p, 480/59.94i, 1080/50i, 720/50p, 576/50i
Recording/Playback Time AVC-Intra100/DVCPRO HD: approx. 64 minutes with 64 GB P2 card
AVC-Intra50/DVCPRO 50: approx. 128 minutes with 64 GB P2 card
DVCPRO/DV: approx. 256 minutes with 64 GB P2 card
Video Signals AVC-Intra100/DVCPRO HD
Y: 74.1758 MHz, PB/PR: 37.0879 MHz (59.94 Hz)
Y: 74.2500 MHz, PB/PR: 37.1250 MHz (50 Hz)
DVCPRO 50
Y: 13.5 MHz, P PB/PR: 6.75 MHz
DVCPRO
Y: 13.5 MHz, PB/PR: 3.375 MHz
Quantizing AVC-Intra100/AVC-Intra50: 10 bit
DVCPRO HD/DVCPRO 50/DVCPRO/DV: 8 bit
Video Compression AVC-Intra100/AVC-Intra50 MPEG-4 AVC/H.264 Intra Profile
DVCPRO HD: DV-Based Compression (SMPTE 370M)
DVCPRO 50/DVCPRO: DV-Based Compression (SMPTE 314M)
DV: DV Compression (IEC 61834-2)
Audio Signals AVC-Intra100/AVC-Intra50: 48 kHz, 16 bit, 4CH
DVCPRO HD/DVCPRO 50: 48 kHz, 16 bit, 4CH
DVCPRO/DV: 48 kHz, 16 bit, 2CH/4CH switchable
Headroom 20 dB/18 dB switching via menu
Interface
SDI Output Connector: BNC (x1)
HD-SDI: 0.8 V [p-p], 75 Ω
SD-SDI: 0.8 V [p-p], 75 Ω
Mounting the optional AG-YA600G HD/SD SDI Input Board enables SDI input
Monitor Output Connector: BNC (x1), HD/SD-SDI/VBS (Analog Composite switchable)
HD SDI: 0.8 V [p-p], 75 ohm
SD SDI: 0.8 V [p-p], 75 ohm
VBS: 1.0 V [p-p], 75 ohm
HDMI Output Connector: HDMI TypeA terminal (x1), VIERA Link not supported
Audio Input Connector: 3 pin XLR (x2)
LINE/MIC switchable, high impedance
LINE: 0 dBu, MIC:-50/-60 dBu (switchable)
MIC +48 V ON/OFF (switchable)
Microphone Input Connector: 3 pin XLR (x1)
+MIC/+48 V (switchable)
-40/-50/-60 dBu (switchable)
Wireless 25 pin, D-SUB, -40 dBu 2CH supported
Audio Output Connector: pin jack (x2), CH1/CH2
Output: 316 mV, 600 Ω
Headphone Output 3.5 mm stereo mini jack (x1)
Speaker 20 mm diameter (x1)
Genlock BNC (x1) 1.0 V [p-p], 75 Ω
Timecode Input Connector: BNC (x1), 0.5 V [p-p] tΩ 8V [p-p], 10 kΩ
Input Connector: BNC (x1), 2.0 V ±0.5 V [p-p], lΩw impedance
(IN/OUT switchable)
DC Input XLR 4 pin (x1), DC 12 V (DC 11.0 V to 17.0 V )
DC Output 4 pin, DC 12 V (DC 11.0 V to 17.0 V ), Max. 1.5 A
USB USB 2.0 (Host): Type-A, 4 pin
USB 2.0 (Device): Type-B, 4 pin
USB 2.0 (HOST): Type-A, 4 pin (for Wireless Module AJ-WM6)
Other Remote: 10-pin
Lens: 12-pin
Viewfinder: 20-pin
Display
Display Type color LCD
Display Size 3.45″ diagonal
Aspect Ratio 16:9
Resolution 920,000 dots
Features Removable, flip-up eyepiece with diopter and eye cup
General
Supply Voltage DC 12 V (DC 11 V to 17 V)
Power Consumption 18 W (main unit only)
22 W (with AG-YDX600G and AG-YA600G)
Operating Temperature 32 ~ 104° F (0 ~ 40° C)
Operating Humidity 10 ~ 85% (no condensation)
Storage Temperature -4 ~ 140° F (-20 ~ 60° C)
Dimensions 5.66 x 10.5 x 13.78″ (144 x 267 x 350 mm) (excluding protrusions)
Weight Approximately 6.2 lb (2.8 kg) (excluding battery and accessories)
Packaging Info
Package Weight 20.35 lb
Box Dimensions (LxWxH) 23.0 x 19.5 x 15.0″
